Datto Edge Routers
Datto Network Appliance (DNA) and D200
Features & Benefits of Datto Networking Edge Routers
Always Connected Internet
In the event that internet connection is lost, the Datto Edge Routers will keep your organization connected to the internet so your organizaiton can continue operations.
Integrated Firewall
These edge routers include stateful firewall and intrusion detection designed to protect against unwanted cyber threats.
Enhanced Web Content Filtering
Stop threats from coming into your network and also communicating back out to the internet.
Cloud Based Management
Accessed through an online secure Datto account you can manage your network from anywhere.

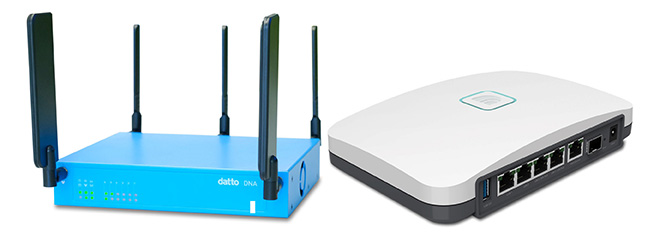

Datto Networking Appliance (DNA) Edge Router
Designed for environments with 254 or less devices
For organizations that cannot have any downtime
Includes full 4G LTE failover
Stateful firewall
Secondary internet failover connection
Two WAN ports, both active/active- allows for two ISPs and the available LTE failover
See how the the DNA Edge Router Works and Get Your Questions Answered by a Datto Engineer
Is the DNA the Right Edge Router for Your Organization?
You have complex VPN Configuration Needs
The DNA edge router may be the best option for your organizaiton if you have complex VPN configuration needs such as: setting a shared secret, entering a subnet and subnet mask, add users, multiple site-to-site topologies and more.
You Need Multiple Failover Options
With 2 WAN ports, you can have 2 separate ISPs connected to its own WAN. If the first ISP is down, the device fails over to the second ISP. If both ISPs are down, the business can continue operations using the 4G LTE connection.
You Need On-Device Intrusion Detection
The DNA uses SNORT for intrusion detection and prevention and all processing is done on the local device resulting in much faster performance.
Your LTE Signal Strength is Unreliable
With an external, high-gain LTE antenna and the option to purchase indoor or outdoor extension cables, your DNA will get the best possible LTE signal.
D200 Edge Router
Designed for environments with 40 users or less
High performance edge router with built in AC Wave 1 wireless
For organizations that can do without VPN connections in the event of LTE failover
Priced competitively for cost conscious organizations
See how the the D200 Edge Router Works and Get Your Questions Answered by a Datto Engineer
Key Specifications for Datto Edge Routers
| Datto Networking Appliance (DNA) | D200 | |
| Integrated WiFi | 3 x 3 802.11ac | None |
| Failover |
4G LTE Failover WAN Failover |
4G LTE Failover |
| LTE Antennas | External Extension options (North America only) | Internal |
| Intrusion Detection & Prevention | Yes | No |
| Stateful Firewall | Yes | Yes |
| Enhanced Web Content Filtering | Yes (Titan HQ) | Yes (Titan HQ) |
| Processor | 8 core 2.4GHz Intel | Quad-core Mediatek 7623A ARM |
| RAM | 8GB DDR3 | 1GB DDR3 |
| Storage | 32GB industrial compact flash | 4GB eMMC flash |
| Ports |
2-GigE WAN ports 4-GigE LAN ports |
1-GigE WAN port 4-GigE LAN ports 1-SFP port |
| PoE | No | 2-24V Passive PoE |
Call us at (818) 528-5600
for information on the Datto Networking Edge Routers
